Why Should You Map Your Pipes Before a Remodel, Addition, or Trenchless Repair?

Map your pipes before a remodel, addition or trenchless repair because drawings rarely match what is in the ground. Pipe mapping before a remodel in El Paso shows where sewer, water and gas lines actually run, how deep they sit and what shape they are in, so you avoid building over a lateral, cutting a live line or pricing a repair around guesses.

Most remodel budgets account for cabinets, framing and finishes. Few account for the sewer lateral hiding under the spot where the new bedroom footing goes, or the cracked clay pipe sitting beneath a freshly poured patio.

This guide is for homeowners, builders and property managers planning work that touches the ground or the slab. It covers what a pipe map shows, where it pays off, when you can skip it, and how it sets up trenchless repairs in El Paso.

The short answer: fix surprises on paper, not in concrete

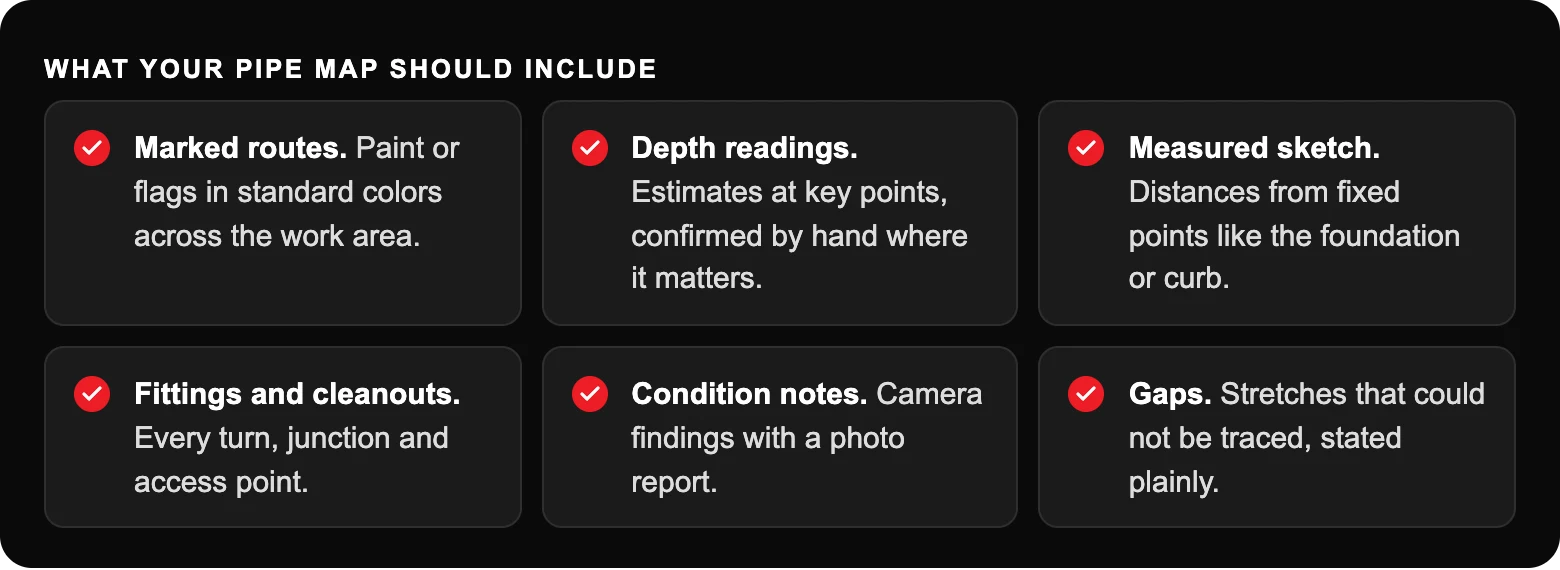

A pipe map is a record of verified line locations, depths, fittings and pipe condition, marked on the ground and sketched with measurements. It turns underground unknowns into design facts before anyone commits to a footprint or a bid.

Finding a problem during planning costs a revised drawing. Finding it after the slab is poured can mean saw cutting new concrete, rerouting a drain or repairing a line the crew hit. Angi puts typical sewer line repairs after accidental damage at $1,400 to $5,300 nationally. Actual El Paso costs depend on what the camera finds.

Why drawings and memory are not enough

Builder plans show intent. Decades of repairs, owner additions and utility work change reality. The Federal Highway Administration’s subsurface utility engineering program grades underground information by quality level, and it calls records and verbal recollections typically unreliable. The same scale works for a backyard.

Most residential projects need Level B across the work area, with a few Level A checks where a footing, trench or bore will pass close to a line.

Where pipe mapping pays off in remodels and additions

Room additions and new footings

An addition off the back of a house often lands right on top of the sewer lateral. Building over it can leave a line that is hard to reach for future cleaning or repair, and it may raise questions at plan review. The City of El Paso Planning and Inspections department requires a permit to construct, enlarge, alter or repair a building, so knowing the line locations early keeps the drawings accurate.

Kitchen and bathroom moves on a slab

Moving a toilet, shower or sink on a slab means tying into an existing drain with enough slope to flow. A camera and sonde locate shows where the branch lines run under the floor, how they connect to the building drain and whether old cast iron is scaled or cracked. That shapes where fixtures can go and whether the slab needs cutting at all, a topic we cover in repairing under slab drains without jackhammering.

Pools, patios, fences and landscaping

Pool excavation, post holes and irrigation trenches hit private lines constantly. Texas 811 does not mark them; the Texas811 FAQ says private utilities after the meter or main are the owner’s to locate and pay for.

Why trenchless repair depends on an accurate map

Trenchless methods replace or rehabilitate pipe through small access points instead of an open trench. That precision only works if the crew knows the route. For pipe bursting, the map sets where the launch and receiving pits go and flags nearby lines that could be affected as the old pipe is split and pushed outward. For CIPP pipe repair, it confirms the length to line, the location of bends and branch connections, and the depth at each access point.

It also tells us when trenchless is the wrong choice. A line with a severe belly, a section that has fully collapsed or an alignment that doubles back on itself may be better served by a targeted open cut repair. You can see how the process works in our guide to how pipe bursting replaces a sewer line without a trench.

Pipe mapping before a remodel in El Paso: local factors

In older central and east El Paso homes, laterals are often clay or cast iron and may have been patched more than once, so the route can differ from any drawing on file. Caliche and rocky fill make exploratory digging slow, which is another reason to know where lines are before a crew breaks ground.

Ownership shapes the scope. El Paso Water makes the customer responsible for the sewer service line from the tap at the main into the property, so the whole lateral falls within a private map. If you just bought the house, a camera inspection may already have told you part of the story; see whether a sewer scope is worth it before buying in El Paso.

What to do next

1. Mark the areas where you will dig, pour concrete or cut the slab.
2. Gather plans and past inspection reports, treating them as leads to verify.
3. Schedule a camera inspection and pipe locating and mapping before design is final.
4. Share the map with your designer and builder so the footprint and bids reflect it.
5. Check that anyone doing plumbing work holds a license through the Texas State Board of Plumbing Examiners.
6. Contact Texas 811 at least two working days before digging starts.

Ready to plan around facts? Request Service or call 915.858.0166 to talk with the people who will do the work.
